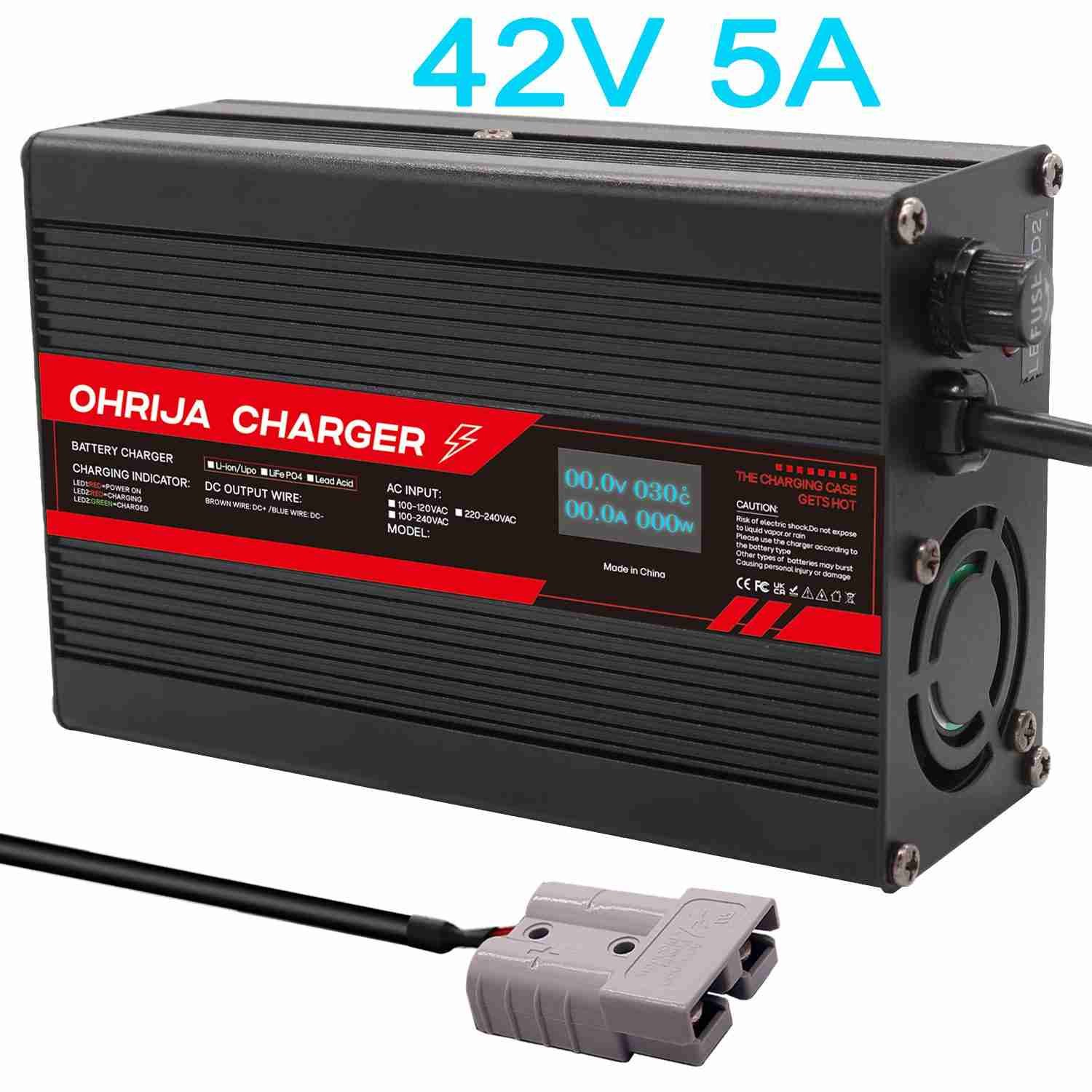

OHRIJA 36v lithium battery charger 42V 5A OLED charger makes it suitable for 10S 36V Li-ion batteries

Warning

Please confirm the required parameters, input plug and output connector. If you cannot confirm, please do not buy or contact customer service for support. (There will be a 10% error between the display screen and the actual parameters. If you mind, please do not buy it.)Thank you!
1. Do not use in high temperature, dark and humid environment
2. Keep it in a ventilated environment
3. Keep away from flammable and explosive items

Product parameters

Product model: HRH180
Product material: aluminum alloy shell
Output voltage: maximum 42V ±0.2v
Output current: maximum 5Amp ±0.2a
Product size: 135*90*50MM 0.9kg
Applicable battery type: 10S 37V lithium-ion battery
Working power: maximum  240W
Color: black,red  optional
Input plug: US, EU.UK.AU (select the correct plug according to local standards)
Output connector: XT60 | Crocodile Clip | Anderson 50A | XLR | DC2.5/2.1 | GX16 1+3- | IEC C13 (select the correct connector according to the battery port)
Package: charger * 1, DC 1m output cable * 1, input cable 1m * 1, instruction manual * 1

Product Introduction

1.Efficient  Charging
Adopting advanced switching power supply technology, the charging efficiency is as high as 85% or more, shortening the charging time and reducing energy consumption.
2.Constant  voltage and constant current charging mode
The charger works in constant current (CC) mode until the battery voltage approaches the set value (42V), and then switches to constant voltage (CV) mode to ensure the safety of the charging process and avoid overcharging.
3.Multiple  protection functions
· Overvoltage protection: When the voltage exceeds the safe range, the charger automatically cuts off the power to prevent battery damage.
· Overcurrent protection: When the current exceeds the rated value, the output current is automatically limited to protect the battery and charger.
· Short circuit protection: The charger has a short circuit protection function to avoid dangers caused by short circuits.
· Reverse connection protection: When the positive and negative poles of the battery are reversed, the charger automatically stops working to avoid damage to the battery and charger.
4.LED indicator lights
The charger is equipped with LED indicator lights to display the current charging status:
· Red light: Charging.
· Green light: Charging completed or standby.
5.Voltage and current can be calibrated
· The adjustable resistor VR1 inside the charger can be calibrated between 36-44V
· The adjustable resistor VR2 can calibrate the current between 5 and 6 amps
· The charger needs a battery voltage of at least 24V to work
· The charger can directly output voltage and current for use as an adapter

Applicable devices

· This 42V 5A battery charger is designed for electric bicycles, electric scooters and other lithium-ion battery devices. The charger uses high-efficiency conversion technology to ensure · fast and safe battery charging and extend battery life.
The charger is only suitable for 10S 37V lithium-ion batteries, electric bicycle chargers, electric scooter chargers and other 10S 37V lithium-ion battery devices.

Charging time

· The 42V 5A Li-ion battery charger is designed for fast charging of 10S 37V Li-ion batteries and can charge 10S 37V Li-ion batteries at a rate of 4 amps.
· With a maximum voltage of 42V and a rated current of 4 Amp, it can fully charge a 20Ah Li-ion battery in about 5 hours and a 40Ah battery in about 10 hours. A 80Ah battery can be fully charged in 20 hours. For smaller batteries (<10Ah), we recommend using a 3A charger. All Li-ion batteries should be charged using a charger that is compatible with Li-ion batteries, such as this one. Using other types of chargers to charge the battery will reduce the performance and life of the battery.

Frequently asked questions

1. Not working
· Check if the AC input voltage is 110 or 220V
· Check if the input AC terminal is connected correctly and if the fuse is damaged
· Check if the output connector is connected correctly, if it matches, and if the fuse is damaged
· Check if the BMS system is protected
2. How loud is the noise
Since there is a fan inside the charger, the noise is about 40-60 db
