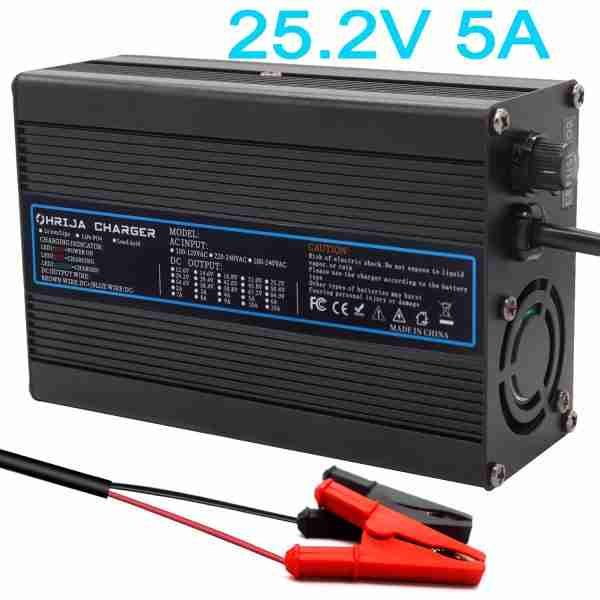

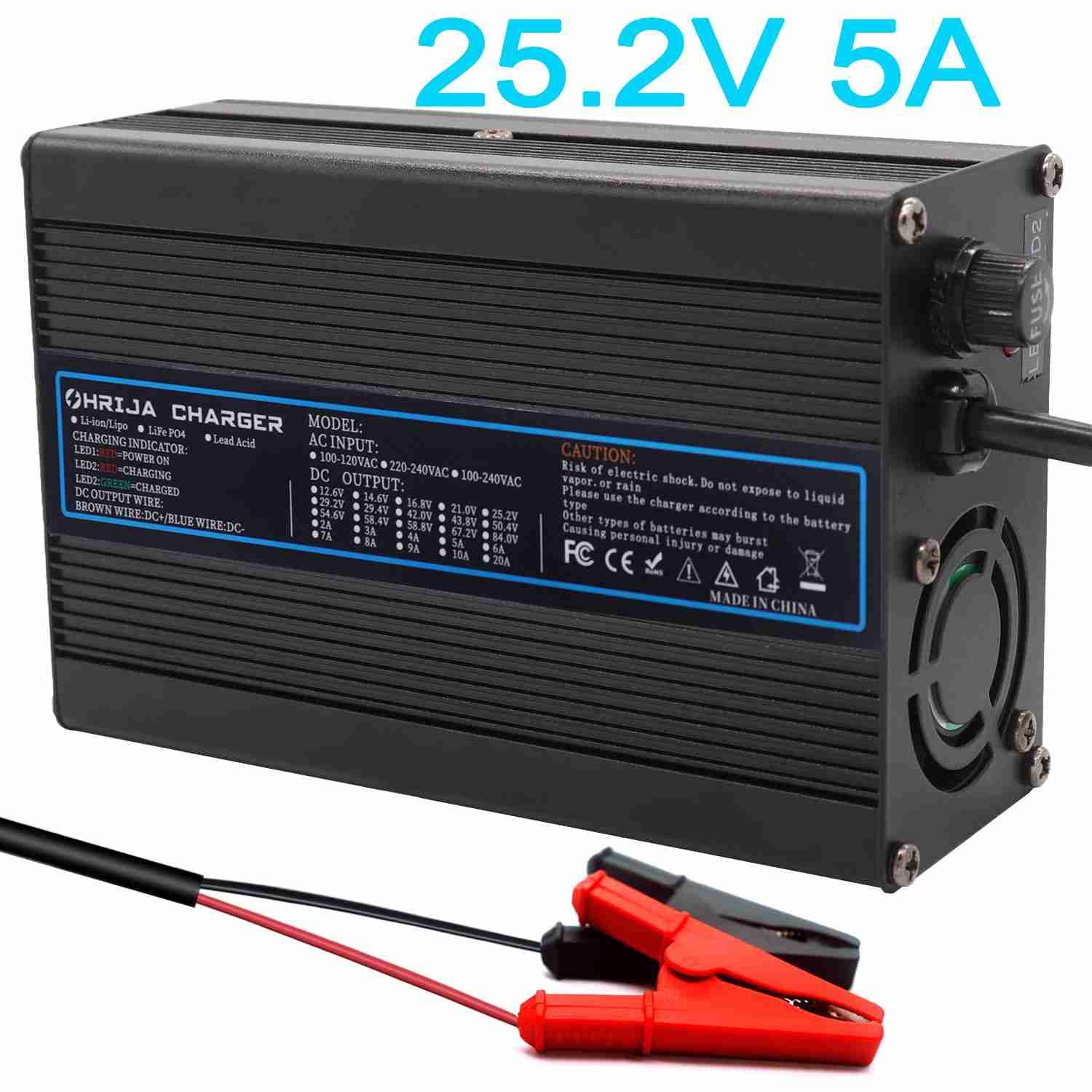

OHRIJA ninebot scooter charger 25.2V 5A charger makes it suitable for 6S 24V Li-ion batteries

Warning

Please confirm the required parameters, input plug and output connector. If you cannot confirm, please do not buy or contact customer service for support. Thank you!
1. Do not use in high temperature, dark and humid environment
2. Keep it in a ventilated environment
3. Keep away from flammable and explosive items

Product parameters

Product model: HRH180
Product material: aluminum alloy shell
Output voltage: maximum 25.2V ±0.2v
Output current: maximum 5Amp ±0.2a
Product size: 135*90*50MM 0.9kg
Applicable battery type: 6S 22.2V lithium-ion battery
Working power: maximum 175W
Color: black, silver,red ,blue,green,optional
Input plug: US, EU.UK.AU (select the correct plug according to local standards)
Output connector:XT60 | Crocodile Clip | Anderson 50A | GX16 1+3- (select the correct connector according to the battery port)
Package: charger * 1, DC 1m output cable * 1, input cable 1m * 1, instruction manual * 1

Product Introduction

1.Efficient Charging
Adopting advanced switching power supply technology, the charging efficiency is as high as 85% or more, shortening the charging time and reducing energy consumption.
2.Constant voltage and constant current charging mode
The charger works in constant current (CC) mode until the battery voltage approaches the set value (25.2V), and then switches to constant voltage (CV) mode to ensure the safety of the charging process and avoid overcharging.
3.Multiple protection functions
· Overvoltage protection: When the voltage exceeds the safe range, the charger automatically cuts off the power to prevent battery damage.
· Overcurrent protection: When the current exceeds the rated value, the output current is automatically limited to protect the battery and charger.
· Short circuit protection: The charger has a short circuit protection function to avoid dangers caused by short circuits.
· Reverse connection protection: When the positive and negative poles of the battery are reversed, the charger automatically stops working to avoid damage to the battery and charger.
4.LED indicator lights
The charger is equipped with LED indicator lights to display the current charging status:
· Red light: Charging.
· Green light: Charging completed or standby.
5.Voltage and current can be calibrated
· The adjustable resistor VR1 inside the charger can be calibrated between 20-30V
· The adjustable resistor VR2 can calibrate the current between 3 and 5 amps
· The charger needs a battery voltage of at least 13V to work
· The charger can directly output voltage and current for use as an adapter

Ninebot scooter charger Applicable devices

· This 25.2V 5A battery charger is designed for electric bicycles, electric scooters and other lithium-ion battery devices. The charger uses high-efficiency conversion technology to ensure · fast and safe battery charging and extend battery life.
The charger is only suitable for 6S 22.2V lithium-ion batteries, electric bicycle chargers, electric scooter chargers and other 6S 22.2V lithium-ion battery devices.ninebot scooter charger.

Charging time

· The 25.2V 5A Li-ion battery charger is designed for fast charging of 6S 22.2V Li-ion batteries and can charge 6S 22.2V Li-ion batteries at a rate of 5 amps.
· With a maximum voltage of 25.2V and a rated current of 5 Amp, it can fully charge a 30Ah Li-ion battery in about 6 hours and a 60Ah battery in about 12 hours. A 90Ah battery can be fully charged in 18 hours. For smaller batteries (<10Ah), we recommend using a 5A charger. All Li-ion batteries should be charged using a charger that is compatible with Li-ion batteries, such as this one. Using other types of chargers to charge the battery will reduce the performance and life of the battery.

Frequently asked questions

1. Not working
· Check if the AC input voltage is 110 or 220V
· Check if the input AC terminal is connected correctly and if the fuse is damaged
· Check if the output connector is connected correctly, if it matches, and if the fuse is damaged
· Check if the BMS system is protected
2. How loud is the noise
Since there is a fan inside the charger, the noise is about 40-60 db
